A well-insulated suit designed for kiln & furnace maintenance

The X50 Kiln Suit is a heavily insulated aluminized suit designed to protect from extended exposure to extreme heat. The X50 suit features a Z-Flex aluminized radiant shell, foil layers for added radiant protection, fiberglass insulation to protect from exposure to conductive and convective heat, and a Neoprene lining to protect from steam, vapor, and gas. All X Series suits are designed to be worn over standard industrial work wear. It is important for users to wear long-sleeve shirts and pants made with non-flammable fibers.

The X50 suit can be used in a wide range of industries and applications including in the casting, foundry, processing, and petrochemical industries for kiln and oven operations and hot maintenance and repair activities.

Related Downloads

Product Image for Item #2100343

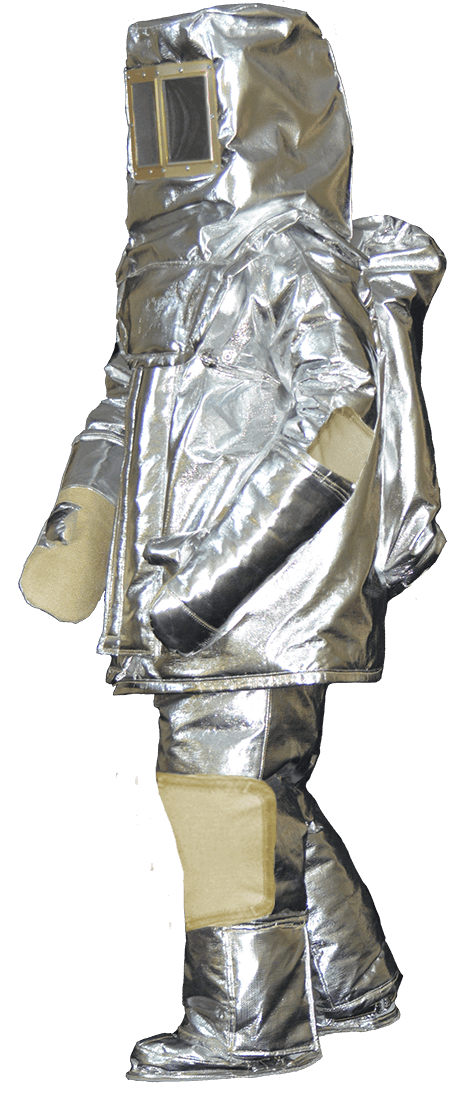

X50 Kiln Suit

  • Item: 2100343
  • Weight: 46.00 lbs21 kgs
  • Size: One Size Fits Most
  • Style: X50
  • Ambient Temp: 1500 °F815 °C
  • Radiant Temp: 3000 °F1650 °C

Suit Construction

  • Z-Flex A-601 aluminized glass outer shell
  • Z-Flex AF F-628 Foil
  • Fiberglass insulation
  • Neoprene liner


Testing & Certification

The suit lay-up meets the ISO 11612 Standard

The Z-Flex® shell meets or exceeds the following:
  • Radiant Heat: ISO 6942 / EN 366 / ASTM F1939
  • Convective Heat: ISO 9151 / EN 367
  • Limited Flame Spread: ISO 15025 / EN 532
  • Molten Metal: ISO 9185 / EN 348 / ASTM F955
  • Abrasion Tear Resistance: ISO 13937 / EN 388


Sizing

  • The X50 suit comes standard in one size designed to fit the majority of users.
  • The suit is also available in 2XL and custom sizes for an additional charge.
  • See our Sizing Chart for more information.


Weight

  • The total weight of the jacket and pants is approximately 28 lbs (12.7 kg).
  • The total weight of the entire ensemble (jacket, pants, hood, gloves, and boots) is approximately 46 lbs (20.9 kg).

Suit Features

Jacket
  • Double storm fly closure with snaps
  • Integrated breathing pouch to accomodate SCBA
  • Raglan sleeves for freedom of movement
  • Inner cinch for a tight seal
  • ZetexPlus elbow pads for durability and protection from contact heat
Pants
  • Zipper closures at the sides of the waist and on the pant cuffs for easy entry
  • Sewn-in suspenders for adjusting pant drop
  • ZetexPlus knee pads for durability and protection from contact heat
Hood
  • Dome style hood
  • Hard cap with ratchet adjustment*
  • Full shoulder length drape with adjustable underarm straps
  • Rounded bib for improved range of motion
  • Dual-layer clear glass lenses
Mitts
  • Aluminized mitts
  • ZetexPlus palm and thumb for protection from direct contact with hot objects
  • Cuff gusset for easy entry
Boots
  • Wooden soles for protection from hot floors
  • New easy-on design
  • Adjustment straps for fit
  • For wear over work boots
Also Included
  • Ballistic nylon duffle bag for storage
  • Nomex® balaclava
* Hard cap meets ANSI-Z89.1-2009 impact resistance tests
